Web Settings Module

The Web Settings module defines how the platform’s management interface and APIs are exposed to the network and how user sessions are secured.

It is a critical layer that impacts:

• Accessibility of the system
• Security of the administrative environment



Network Configuration

The configuration begins with Host and Port settings.

Host

• Defines the IP address the web server binds to
• 0.0.0.0 → listens on all network interfaces
• Specific IP → restricts access to a defined network segment

👉 Best practice:
Use a dedicated management IP in production to ensure network isolation.

Port

• Defines the TCP port for incoming web traffic
• Default: 28080

👉 Ensure:

• The port is open in the firewall
• It is not used by another service

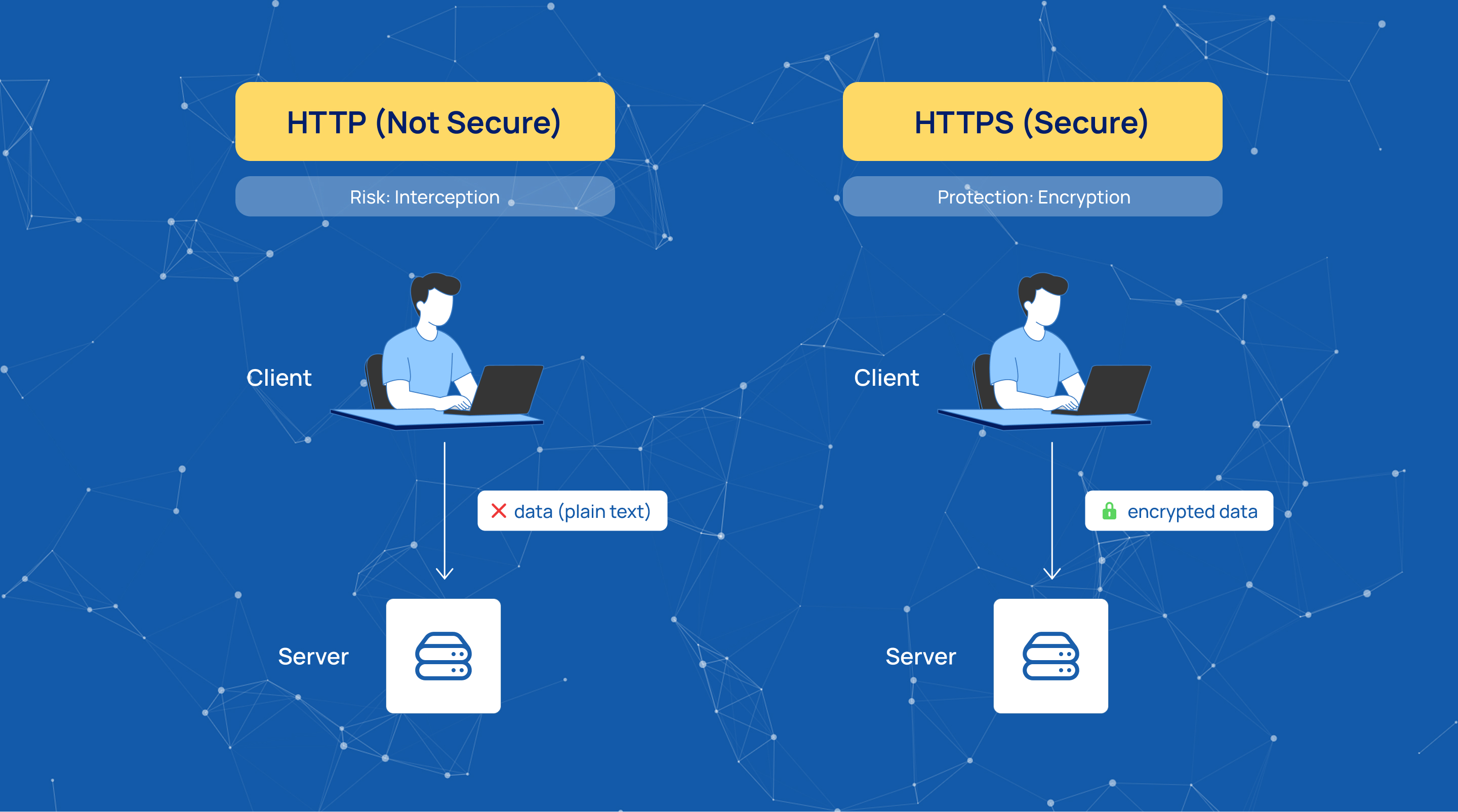

Protocol Configuration

Choosing the correct protocol is essential for security.

• HTTP
  • Suitable for development or testing environments
• HTTPS
  • Required for production
  • Encrypts data in transit
  • Protects sensitive configuration data

👉 Best practice:
Always use HTTPS in production environments.



Cross-Origin Resource Sharing (CORS)

CORS controls whether the interface can be accessed from external web applications.

• Enabled
  • Allows requests from different domains
  • Useful for external dashboards or integrations
• Disabled
  • Restricts cross-domain access
  • Reduces attack surface

👉 Best practice:
Keep CORS disabled unless explicitly required.



Client State Password (Critical Security Setting)

The Client State Password is one of the most important security parameters.

It is used for:

• Encryption of ViewState
• Signing client-side session data

What is ViewState?

ViewState is a serialized object that stores the state of the web interface on the client side.

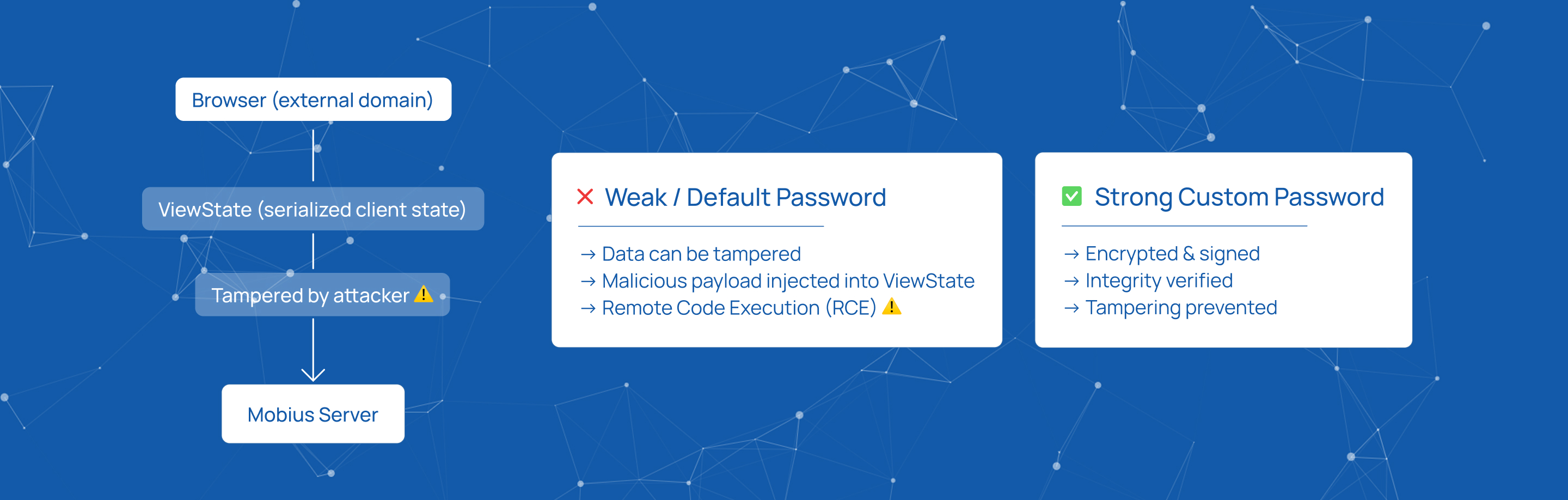

Security Risks

If not properly secured:

• ViewState can be tampered with
• Attackers may inject malicious serialized objects
• This can lead to:
  • Remote Code Execution (RCE)
  • Unauthorized command execution on the server

Default Behavior

• A default password is provided out of the box
• This ensures encryption is enabled
• However, the default value is publicly known

Best Practice

👉 Always replace the default password with a custom one.

Requirements:

• High-entropy
• Alphanumeric
• Unique per installation

👉 This prevents:

• State injection attacks
• ViewState deserialization exploits



How to Configure

Host

• Enter the IP address for the web server
• Use 0.0.0.0 for all interfaces
• Use a specific IP to restrict access

Port

• Define the TCP port (default: 28080)
• Ensure availability and firewall access

Protocol Selection

• Choose HTTP or HTTPS
• For HTTPS:
  • Upload valid SSL/TLS certificates
  • Ensure secure handshake

CORS

• Yes → allow cross-domain requests
• No → restrict access (recommended by default)

Client State Password

• Replace the default value
• Use a strong, unique string

👉 This is a mandatory security step



Summary

The Web Settings module plays a key role in securing and exposing the management interface.

Proper configuration ensures:

• Controlled access to the system
• Secure communication (HTTPS)
• Protection against advanced attacks (e.g., RCE)
